第21章 - 间接绘制（动画模型）和计算着色器（Indirect drawing (animated models) and compute shaders）
在本章中，我们将在使用间接绘制（indirect drawing）时添加对动画模型的支持。为此，我们将引入一个新主题，计算着色器（compute shaders）。我们将使用计算着色器（compute shaders）将模型顶点从绑定姿势转换为最终位置（根据当前动画）。完成此操作后，我们可以使用常规着色器（Shader）渲染它们，渲染时无需区分动画模型和非动画模型。此外，我们将能够将动画变换与渲染过程解耦。通过这样做，我们将能够以与渲染速率不同的速率更新动画模型（如果它们没有改变，我们不需要在每一帧中转换动画顶点）。
您可以在此处找到本章的完整源代码。
概念
在解释代码之前，让我们解释一下动画模型间接绘制（indirect drawing）背后的概念。我们将遵循的方法与上一章中使用的方法大致相同。我们将有一个全局缓冲区（Buffers），其中包含顶点数据。主要区别在于，我们将首先使用计算着色器（compute shaders）将顶点从绑定姿势转换为最终姿势。此外，我们不会为模型使用多个实例。原因在于，即使我们有多个实体共享同一个动画模型，它们也可能处于不同的动画状态（动画可能稍后开始，更新速率较低，甚至模型的特定选定动画也可能不同）。因此，在包含动画顶点的全局缓冲区（Buffers）中，我们需要为每个实体提供一个单独的数据块。
我们仍然需要保留绑定数据，我们将为场景中的所有网格（Mesh）创建另一个全局缓冲区（Buffers）。在这种情况下，我们不需要为每个实体设置单独的数据块，每个网格（Mesh）只需要一个。计算着色器（compute shaders）将访问该绑定姿势数据缓冲区（Buffers），为每个实体处理该数据，并将结果存储到另一个全局缓冲区（Buffers）中，其结构类似于用于静态模型的结构。
模型加载
我们需要更新Model类，因为我们将不再在此类中存储骨骼矩阵数据。相反，该信息将存储在公共缓冲区（Buffers）中。因此，内部类AnimatedFrame不能再是记录（记录是不可变的）。
public class Model {
...
public static class AnimatedFrame {
private Matrix4f[] bonesMatrices;
private int offset;
public AnimatedFrame(Matrix4f[] bonesMatrices) {
this.bonesMatrices = bonesMatrices;
}
public void clearData() {
bonesMatrices = null;
}
public Matrix4f[] getBonesMatrices() {
return bonesMatrices;
}
public int getOffset() {
return offset;
}
public void setOffset(int offset) {
this.offset = offset;
}
}
...
}
从记录更改为常规内部类，更改了我们访问Model类属性的方式，这需要在ModelLoader类中进行细微修改：
public class ModelLoader {
...
private static void buildFrameMatrices(AIAnimation aiAnimation, List<Bone> boneList, Model.AnimatedFrame animatedFrame,
int frame, Node node, Matrix4f parentTransformation, Matrix4f globalInverseTransform) {
...
for (Bone bone : affectedBones) {
...
animatedFrame.getBonesMatrices()[bone.boneId()] = boneTransform;
}
...
}
...
}
现在让我们回顾一下我们将需要的新全局缓冲区（Buffers），这些缓冲区（Buffers）将在RenderBuffers类中进行管理：
public class RenderBuffers {
private int animVaoId;
private int bindingPosesBuffer;
private int bonesIndicesWeightsBuffer;
private int bonesMatricesBuffer;
private int destAnimationBuffer;
...
public void cleanup() {
...
glDeleteVertexArrays(animVaoId);
}
...
public int getAnimVaoId() {
return animVaoId;
}
public int getBindingPosesBuffer() {
return bindingPosesBuffer;
}
public int getBonesIndicesWeightsBuffer() {
return bonesIndicesWeightsBuffer;
}
public int getBonesMatricesBuffer() {
return bonesMatricesBuffer;
}
public int getDestAnimationBuffer() {
return destAnimationBuffer;
}
...
}
animVaoId将存储定义将包含转换后的动画顶点的数据的顶点数组对象（Vertex Array Object，简称VAO），即经过计算着色器（compute shaders）处理后的数据（记住每个网格（Mesh）和实体一个数据块）。数据本身将存储在缓冲区（Buffers）中，其句柄将存储在destAnimationBuffer中。我们需要在计算着色器（compute shaders）中访问该缓冲区（Buffers），它不理解顶点数组对象（Vertex Array Objects，VAOs），只理解缓冲区（Buffers）。我们还需要将骨骼矩阵和索引以及权重存储到分别由bonesMatricesBuffer和bonesIndicesWeightsBuffer表示的两个缓冲区（Buffers）中。在cleanup方法中，我们不能忘记清理新的顶点数组对象（Vertex Array Object，简称VAO）。我们还需要为新属性添加getter。
我们现在可以实现loadAnimatedModels，它如下所示：
public class RenderBuffers {
...
public void loadAnimatedModels(Scene scene) {
List<Model> modelList = scene.getModelMap().values().stream().filter(Model::isAnimated).toList();
loadBindingPoses(modelList);
loadBonesMatricesBuffer(modelList);
loadBonesIndicesWeights(modelList);
animVaoId = glGenVertexArrays();
glBindVertexArray(animVaoId);
int positionsSize = 0;
int normalsSize = 0;
int textureCoordsSize = 0;
int indicesSize = 0;
int offset = 0;
int chunkBindingPoseOffset = 0;
int bindingPoseOffset = 0;
int chunkWeightsOffset = 0;
int weightsOffset = 0;
for (Model model : modelList) {
List<Entity> entities = model.getEntitiesList();
for (Entity entity : entities) {
List<RenderBuffers.MeshDrawData> meshDrawDataList = model.getMeshDrawDataList();
bindingPoseOffset = chunkBindingPoseOffset;
weightsOffset = chunkWeightsOffset;
for (MeshData meshData : model.getMeshDataList()) {
positionsSize += meshData.getPositions().length;
normalsSize += meshData.getNormals().length;
textureCoordsSize += meshData.getTextCoords().length;
indicesSize += meshData.getIndices().length;
int meshSizeInBytes = (meshData.getPositions().length + meshData.getNormals().length * 3 + meshData.getTextCoords().length) * 4;
meshDrawDataList.add(new MeshDrawData(meshSizeInBytes, meshData.getMaterialIdx(), offset,
meshData.getIndices().length, new AnimMeshDrawData(entity, bindingPoseOffset, weightsOffset)));
bindingPoseOffset += meshSizeInBytes / 4;
int groupSize = (int) Math.ceil((float) meshSizeInBytes / (14 * 4));
weightsOffset += groupSize * 2 * 4;
offset = positionsSize / 3;
}
}
chunkBindingPoseOffset += bindingPoseOffset;
chunkWeightsOffset += weightsOffset;
}
destAnimationBuffer = glGenBuffers();
vboIdList.add(destAnimationBuffer);
FloatBuffer meshesBuffer = MemoryUtil.memAllocFloat(positionsSize + normalsSize * 3 + textureCoordsSize);
for (Model model : modelList) {
model.getEntitiesList().forEach(e -> {
for (MeshData meshData : model.getMeshDataList()) {
populateMeshBuffer(meshesBuffer, meshData);
}
});
}
meshesBuffer.flip();
glBindBuffer(GL_ARRAY_BUFFER, destAnimationBuffer);
glBufferData(GL_ARRAY_BUFFER, meshesBuffer, GL_STATIC_DRAW);
MemoryUtil.memFree(meshesBuffer);
defineVertexAttribs();
// Index VBO
int vboId = glGenBuffers();
vboIdList.add(vboId);
IntBuffer indicesBuffer = MemoryUtil.memAllocInt(indicesSize);
for (Model model : modelList) {
model.getEntitiesList().forEach(e -> {
for (MeshData meshData : model.getMeshDataList()) {
indicesBuffer.put(meshData.getIndices());
}
});
}
indicesBuffer.flip();
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, vboId);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, indicesBuffer, GL_STATIC_DRAW);
MemoryUtil.memFree(indicesBuffer);
glBindBuffer(GL_ARRAY_BUFFER, 0);
glBindVertexArray(0);
}
...
}
我们稍后将看到以下方法是如何定义的，但目前：
* loadBindingPoses：存储与动画模型关联的所有网格（Mesh）的绑定姿势信息。
* loadBonesMatricesBuffer：存储动画模型的每个动画的骨骼矩阵。
* loadBonesIndicesWeights：存储动画模型的骨骼索引和权重信息。
代码与loadStaticModels非常相似，我们首先为动画模型创建一个顶点数组对象（Vertex Array Object，简称VAO），然后遍历模型的网格（Mesh）。我们将使用一个缓冲区（Buffers）来保存所有数据，因此我们只需遍历这些元素以获取最终缓冲区（Buffers）大小。请注意，第一个循环与静态版本略有不同。我们需要遍历与模型关联的实体，并为每个实体计算所有关联网格（Mesh）的大小。
让我们检查一下loadBindingPoses方法：
public class RenderBuffers {
...
private void loadBindingPoses(List<Model> modelList) {
int meshSize = 0;
for (Model model : modelList) {
for (MeshData meshData : model.getMeshDataList()) {
meshSize += meshData.getPositions().length + meshData.getNormals().length * 3 +
meshData.getTextCoords().length + meshData.getIndices().length;
}
}
bindingPosesBuffer = glGenBuffers();
vboIdList.add(bindingPosesBuffer);
FloatBuffer meshesBuffer = MemoryUtil.memAllocFloat(meshSize);
for (Model model : modelList) {
for (MeshData meshData : model.getMeshDataList()) {
populateMeshBuffer(meshesBuffer, meshData);
}
}
meshesBuffer.flip();
glBindBuffer(GL_SHADER_STORAGE_BUFFER, bindingPosesBuffer);
glBufferData(GL_SHADER_STORAGE_BUFFER, meshesBuffer, GL_STATIC_DRAW);
MemoryUtil.memFree(meshesBuffer);
glBindBuffer(GL_ARRAY_BUFFER, 0);
}
...
}
loadBindingPoses遍历所有动画模型，获取总大小以容纳所有关联的网格（Mesh）。使用该大小，创建一个缓冲区（Buffers）并使用前面章节中已有的populateMeshBuffer填充它。因此，我们将动画模型所有网格（Mesh）的绑定姿势顶点存储到单个缓冲区（Buffers）中。我们将在计算着色器（compute shaders）中访问此缓冲区（Buffers），因此您可以看到我们在绑定时使用了GL_SHADER_STORAGE_BUFFER标志。
loadBonesMatricesBuffer方法定义如下：
public class RenderBuffers {
...
private void loadBonesMatricesBuffer(List<Model> modelList) {
int bufferSize = 0;
for (Model model : modelList) {
List<Model.Animation> animationsList = model.getAnimationList();
for (Model.Animation animation : animationsList) {
List<Model.AnimatedFrame> frameList = animation.frames();
for (Model.AnimatedFrame frame : frameList) {
Matrix4f[] matrices = frame.getBonesMatrices();
bufferSize += matrices.length * 64;
}
}
}
bonesMatricesBuffer = glGenBuffers();
vboIdList.add(bonesMatricesBuffer);
ByteBuffer dataBuffer = MemoryUtil.memAlloc(bufferSize);
int matrixSize = 4 * 4 * 4;
for (Model model : modelList) {
List<Model.Animation> animationsList = model.getAnimationList();
for (Model.AnimatedFrame frame : frameList) {
frame.setOffset(dataBuffer.position() / matrixSize);
Matrix4f[] matrices = frame.getBonesMatrices();
for (Matrix4f matrix : matrices) {
matrix.get(dataBuffer);
dataBuffer.position(dataBuffer.position() + matrixSize);
}
frame.clearData();
}
}
dataBuffer.flip();
glBindBuffer(GL_SHADER_STORAGE_BUFFER, bonesMatricesBuffer);
glBufferData(GL_SHADER_STORAGE_BUFFER, dataBuffer, GL_STATIC_DRAW);
MemoryUtil.memFree(dataBuffer);
}
...
}
我们开始遍历每个模型的动画数据，获取每个动画帧的关联变换矩阵（用于所有骨骼），以便计算将保存所有这些信息的缓冲区（Buffers）。一旦我们有了大小，我们就创建缓冲区（Buffers）并开始用这些矩阵填充它（在第二个循环中）。与上一个缓冲区（Buffers）一样，我们将在计算着色器（compute shaders）中访问此缓冲区（Buffers），因此我们需要使用GL_SHADER_STORAGE_BUFFER标志。
loadBonesIndicesWeights方法定义如下：
public class RenderBuffers {
...
private void loadBonesIndicesWeights(List<Model> modelList) {
int bufferSize = 0;
for (Model model : modelList) {
for (MeshData meshData : model.getMeshDataList()) {
bufferSize += meshData.getBoneIndices().length * 4 + meshData.getWeights().length * 4;
}
}
ByteBuffer dataBuffer = MemoryUtil.memAlloc(bufferSize);
for (Model model : modelList) {
for (MeshData meshData : model.getMeshDataList()) {
int[] bonesIndices = meshData.getBoneIndices();
float[] weights = meshData.getWeights();
int rows = bonesIndices.length / 4;
for (int row = 0; row < rows; row++) {
int startPos = row * 4;
dataBuffer.putFloat(weights[startPos]);
dataBuffer.putFloat(weights[startPos + 1]);
dataBuffer.putFloat(weights[startPos + 2]);
dataBuffer.putFloat(weights[startPos + 3]);
dataBuffer.putFloat(bonesIndices[startPos]);
dataBuffer.putFloat(bonesIndices[startPos + 1]);
dataBuffer.putFloat(bonesIndices[startPos + 2]);
dataBuffer.putFloat(bonesIndices[startPos + 3]);
}
}
}
dataBuffer.flip();
bonesIndicesWeightsBuffer = glGenBuffers();
vboIdList.add(bonesIndicesWeightsBuffer);
glBindBuffer(GL_SHADER_STORAGE_BUFFER, bonesIndicesWeightsBuffer);
glBufferData(GL_SHADER_STORAGE_BUFFER, dataBuffer, GL_STATIC_DRAW);
MemoryUtil.memFree(dataBuffer);
glBindBuffer(GL_SHADER_STORAGE_BUFFER, 0);
}
...
}
与之前的方法一样，我们将权重和骨骼索引信息存储到单个缓冲区（Buffers）中，因此我们需要首先计算其大小，然后填充它。与之前的缓冲区（Buffers）一样，我们将在计算着色器（compute shaders）中访问这些缓冲区（Buffers），因此我们需要使用GL_SHADER_STORAGE_BUFFER标志。
计算着色器
现在轮到通过计算着色器（compute shaders）实现动画变换了。如前所述，着色器（Shader）就像任何其他着色器（Shader）一样，但它对其输入和输出没有任何限制。我们将使用它们来转换数据，它们将访问保存绑定姿势和动画变换矩阵信息的全局缓冲区（Buffers），并将结果转储到另一个缓冲区（Buffers）中，其结构类似于用于静态模型的结构。动画的着色器（Shader）代码（anim.comp）定义如下：
#version 460
layout (std430, binding=0) readonly buffer srcBuf {
float data[];
} srcVector;
layout (std430, binding=1) readonly buffer weightsBuf {
float data[];
} weightsVector;
layout (std430, binding=2) readonly buffer bonesBuf {
mat4 data[];
} bonesMatrices;
layout (std430, binding=3) buffer dstBuf {
float data[];
} dstVector;
struct DrawParameters
{
int srcOffset;
int srcSize;
int weightsOffset;
int bonesMatricesOffset;
int dstOffset;
};
uniform DrawParameters drawParameters;
layout (local_size_x=1, local_size_y=1, local_size_z=1) in;
void main()
{
int baseIdx = int(gl_GlobalInvocationID.x) * 14;
uint baseIdxWeightsBuf = drawParameters.weightsOffset + int(gl_GlobalInvocationID.x) * 8;
uint baseIdxSrcBuf = drawParameters.srcOffset + baseIdx;
uint baseIdxDstBuf = drawParameters.dstOffset + baseIdx;
if (baseIdx >= drawParameters.srcSize) {
return;
}
vec4 weights = vec4(weightsVector.data[baseIdxWeightsBuf], weightsVector.data[baseIdxWeightsBuf + 1], weightsVector.data[baseIdxWeightsBuf + 2], weightsVector.data[baseIdxWeightsBuf + 3]);
ivec4 bonesIndices = ivec4(weightsVector.data[baseIdxWeightsBuf + 4], weightsVector.data[baseIdxWeightsBuf + 5], weightsVector.data[baseIdxWeightsBuf + 6], weightsVector.data[baseIdxWeightsBuf + 7]);
vec4 position = vec4(srcVector.data[baseIdxSrcBuf], srcVector.data[baseIdxSrcBuf + 1], srcVector.data[baseIdxSrcBuf + 2], 1);
position =
weights.x * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.x] * position +
weights.y * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.y] * position +
weights.z * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.z] * position +
weights.w * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.w] * position;
dstVector.data[baseIdxDstBuf] = position.x / position.w;
dstVector.data[baseIdxDstBuf + 1] = position.y / position.w;
dstVector.data[baseIdxDstBuf + 2] = position.z / position.w;
baseIdxSrcBuf += 3;
baseIdxDstBuf += 3;
vec4 normal = vec4(srcVector.data[baseIdxSrcBuf], srcVector.data[baseIdxSrcBuf + 1], srcVector.data[baseIdxSrcBuf + 2], 0);
normal =
weights.x * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.x] * normal +
weights.y * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.y] * normal +
weights.z * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.z] * normal +
weights.w * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.w] * normal;
dstVector.data[baseIdxDstBuf] = normal.x;
dstVector.data[baseIdxDstBuf + 1] = normal.y;
dstVector.data[baseIdxDstBuf + 2] = normal.z;
baseIdxSrcBuf += 3;
baseIdxDstBuf += 3;
vec4 tangent = vec4(srcVector.data[baseIdxSrcBuf], srcVector.data[baseIdxSrcBuf + 1], srcVector.data[baseIdxSrcBuf + 2], 0);
tangent =
weights.x * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.x] * tangent +
weights.y * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.y] * tangent +
weights.z * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.z] * tangent +
weights.w * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.w] * tangent;
dstVector.data[baseIdxDstBuf] = tangent.x;
dstVector.data[baseIdxDstBuf + 1] = tangent.y;
dstVector.data[baseIdxDstBuf + 2] = tangent.z;
baseIdxSrcBuf += 3;
baseIdxDstBuf += 3;
vec4 bitangent = vec4(srcVector.data[baseIdxSrcBuf], srcVector.data[baseIdxSrcBuf + 1], srcVector.data[baseIdxSrcBuf + 2], 0);
bitangent =
weights.x * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.x] * bitangent +
weights.y * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.y] * bitangent +
weights.z * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.z] * bitangent +
weights.w * bonesMatrices.data[drawParameters.bonesMatricesOffset + bonesIndices.w] * bitangent;
dstVector.data[baseIdxDstBuf] = bitangent.x;
dstVector.data[baseIdxDstBuf + 1] = bitangent.y;
dstVector.data[baseIdxDstBuf + 2] = bitangent.z;
baseIdxSrcBuf += 3;
baseIdxDstBuf += 3;
vec2 textCoords = vec2(srcVector.data[baseIdxSrcBuf], srcVector.data[baseIdxSrcBuf + 1]);
dstVector.data[baseIdxDstBuf] = textCoords.x;
dstVector.data[baseIdxDstBuf + 1] = textCoords.y;
}
如您所见，代码与前几章中用于动画的代码非常相似（展开循环）。您会注意到，由于数据现在存储在公共缓冲区（Buffers）中，因此每个网格（Mesh）都需要应用偏移量。为了支持计算着色器（compute shaders）中的推送常量。输入/输出数据定义为一组缓冲区（Buffers）：
* srcVector：此缓冲区（Buffers）将包含顶点信息（位置、法线等）。
* weightsVector：此缓冲区（Buffers）将包含特定网格（Mesh）和实体的当前动画状态的权重。
* bonesMatrices：相同，但包含骨骼矩阵信息。
* dstVector：此缓冲区（Buffers）将保存应用动画变换的结果。
有趣的是我们如何计算该偏移量。gl_GlobalInvocationID变量将包含当前在计算着色器（compute shaders）中执行的工作项的索引。在我们的例子中，我们将创建与全局缓冲区（Buffers）中的“块”一样多的工作项。一个块模拟顶点数据，即其位置、法线、纹理坐标（Texture Coordinates）等。因此，对于顶点数据，每次工作项增加时，我们需要在缓冲区（Buffers）中向前移动14个位置（14个浮点数：3个用于位置，3个用于法线，3个用于副切线，3个用于切线，2个用于纹理坐标（Texture Coordinates））。权重缓冲区（Buffers）也适用，它保存与每个顶点关联的权重（4个浮点数）和骨骼索引（4个浮点数）的数据。我们还使用顶点偏移量沿绑定姿势缓冲区（Buffers）和目标缓冲区（Buffers）移动，以及指向每个网格（Mesh）和实体的基本偏移量的drawParameters数据。
我们将在一个名为AnimationRender的新类中使用此着色器（Shader），该类定义如下：
package org.lwjglb.engine.graph;
import org.lwjglb.engine.scene.*;
import java.util.*;
import static org.lwjgl.opengl.GL43.*;
public class AnimationRender {
private ShaderProgram shaderProgram;
private UniformsMap uniformsMap;
public AnimationRender() {
List<ShaderProgram.ShaderModuleData> shaderModuleDataList = new ArrayList<>();
shaderModuleDataList.add(new ShaderProgram.ShaderModuleData("resources/shaders/anim.comp", GL_COMPUTE_SHADER));
shaderProgram = new ShaderProgram(shaderModuleDataList);
createUniforms();
}
public void cleanup() {
shaderProgram.cleanup();
}
private void createUniforms() {
uniformsMap = new UniformsMap(shaderProgram.getProgramId());
uniformsMap.createUniform("drawParameters.srcOffset");
uniformsMap.createUniform("drawParameters.srcSize");
uniformsMap.createUniform("drawParameters.weightsOffset");
uniformsMap.createUniform("drawParameters.bonesMatricesOffset");
uniformsMap.createUniform("drawParameters.dstOffset");
}
public void render(Scene scene, RenderBuffers globalBuffer) {
shaderProgram.bind();
glBindBufferBase(GL_SHADER_STORAGE_BUFFER, 0, globalBuffer.getBindingPosesBuffer());
glBindBufferBase(GL_SHADER_STORAGE_BUFFER, 1, globalBuffer.getBonesIndicesWeightsBuffer());
glBindBufferBase(GL_SHADER_STORAGE_BUFFER, 2, globalBuffer.getBonesMatricesBuffer());
glBindBufferBase(GL_SHADER_STORAGE_BUFFER, 3, globalBuffer.getDestAnimationBuffer());
int dstOffset = 0;
for (Model model : scene.getModelMap().values()) {
if (model.isAnimated()) {
for (RenderBuffers.MeshDrawData meshDrawData : model.getMeshDrawDataList()) {
RenderBuffers.AnimMeshDrawData animMeshDrawData = meshDrawData.animMeshDrawData();
Entity entity = animMeshDrawData.entity();
Model.AnimatedFrame frame = entity.getAnimationData().getCurrentFrame();
int groupSize = (int) Math.ceil((float) meshDrawData.sizeInBytes() / (14 * 4));
uniformsMap.setUniform("drawParameters.srcOffset", animMeshDrawData.bindingPoseOffset());
uniformsMap.setUniform("drawParameters.srcSize", meshDrawData.sizeInBytes() / 4);
uniformsMap.setUniform("drawParameters.weightsOffset", animMeshDrawData.weightsOffset());
uniformsMap.setUniform("drawParameters.bonesMatricesOffset", frame.getOffset());
uniformsMap.setUniform("drawParameters.dstOffset", dstOffset);
glDispatchCompute(groupSize, 1, 1);
dstOffset += meshDrawData.sizeInBytes() / 4;
}
}
}
glMemoryBarrier(GL_SHADER_STORAGE_BARRIER_BIT);
shaderProgram.unbind();
}
}
如您所见，定义非常简单，创建着色器（Shader）时，我们需要设置GL_COMPUTE_SHADER以指示这是计算着色器（compute shaders）。我们将使用的统一变量（Uniforms）将包含绑定姿势缓冲区（Buffers）、权重和矩阵缓冲区（Buffers）以及目标缓冲区（Buffers）中的偏移量。在render方法中，我们只需遍历模型并获取每个实体的网格（Mesh）绘制数据，通过调用glDispatchCompute向计算着色器（compute shaders）分派调用。关键仍然是groupSize变量。如您所见，我们需要调用着色器（Shader）的次数与网格（Mesh）中的顶点块数相同。
其他更改
我们需要更新SceneRender类以渲染与动画模型关联的实体。更改如下所示：
public class SceneRender {
...
private int animDrawCount;
private int animRenderBufferHandle;
...
public void cleanup() {
...
glDeleteBuffers(animRenderBufferHandle);
}
...
public void render(Scene scene, RenderBuffers renderBuffers, GBuffer gBuffer) {
...
// Animated meshes
drawElement = 0;
for (Model model: scene.getModelMap().values()) {
if (!model.isAnimated()) {
continue;
}
for (RenderBuffers.MeshDrawData meshDrawData : model.getMeshDrawDataList()) {
RenderBuffers.AnimMeshDrawData animMeshDrawData = meshDrawData.animMeshDrawData();
Entity entity = animMeshDrawData.entity();
String name = "drawElements[" + drawElement + "]";
uniformsMap.setUniform(name + ".modelMatrixIdx", entitiesIdxMap.get(entity.getId()));
uniformsMap.setUniform(name + ".materialIdx", meshDrawData.materialIdx());
drawElement++;
}
}
glBindBuffer(GL_DRAW_INDIRECT_BUFFER, animRenderBufferHandle);
glBindVertexArray(renderBuffers.getAnimVaoId());
glMultiDrawElementsIndirect(GL_TRIANGLES, GL_UNSIGNED_INT, 0, animDrawCount, 0);
glBindVertexArray(0);
glEnable(GL_BLEND);
shaderProgram.unbind();
}
private void setupAnimCommandBuffer(Scene scene) {
List<Model> modelList = scene.getModelMap().values().stream().filter(m -> m.isAnimated()).toList();
int numMeshes = 0;
for (Model model : modelList) {
numMeshes += model.getMeshDrawDataList().size();
}
int firstIndex = 0;
int baseInstance = 0;
ByteBuffer commandBuffer = MemoryUtil.memAlloc(numMeshes * COMMAND_SIZE);
for (Model model : modelList) {
for (RenderBuffers.MeshDrawData meshDrawData : model.getMeshDrawDataList()) {
RenderBuffers.AnimMeshDrawData animMeshDrawData = meshDrawData.animMeshDrawData();
Entity entity = animMeshDrawData.entity();
// count
commandBuffer.putInt(meshDrawData.vertices());
// instanceCount
commandBuffer.putInt(1);
commandBuffer.putInt(firstIndex);
// baseVertex
commandBuffer.putInt(meshDrawData.offset());
commandBuffer.putInt(baseInstance);
firstIndex += meshDrawData.vertices();
baseInstance++;
}
}
commandBuffer.flip();
animDrawCount = commandBuffer.remaining() / COMMAND_SIZE;
animRenderBufferHandle = glGenBuffers();
glBindBuffer(GL_DRAW_INDIRECT_BUFFER, animRenderBufferHandle);
glBufferData(GL_DRAW_INDIRECT_BUFFER, commandBuffer, GL_DYNAMIC_DRAW);
MemoryUtil.memFree(commandBuffer);
}
public void setupData(Scene scene) {
...
setupAnimCommandBuffer(scene);
...
}
...
}
渲染动画模型的代码与用于静态实体的代码非常相似。区别在于我们没有对共享同一模型的实体进行分组，我们需要为每个实体和关联的网格（Mesh）记录绘制指令。
我们还需要更新ShadowRender类以渲染动画模型：
public class ShadowRender {
...
private int animDrawCount;
private int animRenderBufferHandle;
...
public void cleanup() {
...
glDeleteBuffers(animRenderBufferHandle);
}
...
public void render(Scene scene, RenderBuffers renderBuffers) {
...
// Animated meshes
drawElement = 0;
for (Model model: scene.getModelMap().values()) {
if (!model.isAnimated()) {
continue;
}
for (RenderBuffers.MeshDrawData meshDrawData : model.getMeshDrawDataList()) {
RenderBuffers.AnimMeshDrawData animMeshDrawData = meshDrawData.animMeshDrawData();
Entity entity = animMeshDrawData.entity();
String name = "drawElements[" + drawElement + "]";
uniformsMap.setUniform(name + ".modelMatrixIdx", entitiesIdxMap.get(entity.getId()));
drawElement++;
}
}
glBindBuffer(GL_DRAW_INDIRECT_BUFFER, animRenderBufferHandle);
glBindVertexArray(renderBuffers.getAnimVaoId());
for (int i = 0; i < CascadeShadow.SHADOW_MAP_CASCADE_COUNT; i++) {
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_TEXTURE_2D, shadowBuffer.getDepthMapTexture().getIds()[i], 0);
CascadeShadow shadowCascade = cascadeShadows.get(i);
uniformsMap.setUniform("projViewMatrix", shadowCascade.getProjViewMatrix());
glMultiDrawElementsIndirect(GL_TRIANGLES, GL_UNSIGNED_INT, 0, animDrawCount, 0);
}
glBindVertexArray(0);
}
private void setupAnimCommandBuffer(Scene scene) {
List<Model> modelList = scene.getModelMap().values().stream().filter(m -> m.isAnimated()).toList();
int numMeshes = 0;
for (Model model : modelList) {
numMeshes += model.getMeshDrawDataList().size();
}
int firstIndex = 0;
int baseInstance = 0;
ByteBuffer commandBuffer = MemoryUtil.memAlloc(numMeshes * COMMAND_SIZE);
for (Model model : modelList) {
for (RenderBuffers.MeshDrawData meshDrawData : model.getMeshDrawDataList()) {
RenderBuffers.AnimMeshDrawData animMeshDrawData = meshDrawData.animMeshDrawData();
Entity entity = animMeshDrawData.entity();
// count
commandBuffer.putInt(meshDrawData.vertices());
// instanceCount
commandBuffer.putInt(1);
commandBuffer.putInt(firstIndex);
// baseVertex
commandBuffer.putInt(meshDrawData.offset());
commandBuffer.putInt(baseInstance);
firstIndex += meshDrawData.vertices();
baseInstance++;
}
}
commandBuffer.flip();
animDrawCount = commandBuffer.remaining() / COMMAND_SIZE;
animRenderBufferHandle = glGenBuffers();
glBindBuffer(GL_DRAW_INDIRECT_BUFFER, animRenderBufferHandle);
glBufferData(GL_DRAW_INDIRECT_BUFFER, commandBuffer, GL_DYNAMIC_DRAW);
MemoryUtil.memFree(commandBuffer);
}
}
在Render类中，我们只需要实例化AnimationRender类，并在render循环和cleanup方法中使用它。在render循环中，我们将在最开始调用AnimationRender类的render方法，以便在渲染场景之前应用动画变换。
public class Render {
private AnimationRender animationRender;
...
public Render(Window window) {
...
animationRender = new AnimationRender();
...
}
public void cleanup() {
...
animationRender.cleanup();
...
}
public void render(Window window, Scene scene) {
animationRender.render(scene, renderBuffers);
...
}
...
}
最后，在Main类中，我们将创建两个动画实体，它们将具有不同的动画更新速率，以检查我们是否正确分离了每个实体的信息：
public class Main implements IAppLogic {
...
private AnimationData animationData1;
private AnimationData animationData2;
...
public static void main(String[] args) {
...
Engine gameEng = new Engine("chapter-21", opts, main);
...
}
...
public void init(Window window, Scene scene, Render render) {
...
String bobModelId = "bobModel";
Model bobModel = ModelLoader.loadModel(bobModelId, "resources/models/bob/boblamp.md5mesh",
scene.getTextureCache(), scene.getMaterialCache(), true);
scene.addModel(bobModel);
Entity bobEntity = new Entity("bobEntity-1", bobModelId);
bobEntity.setScale(0.05f);
bobEntity.updateModelMatrix();
animationData1 = new AnimationData(bobModel.getAnimationList().get(0));
bobEntity.setAnimationData(animationData1);
scene.addEntity(bobEntity);
Entity bobEntity2 = new Entity("bobEntity-2", bobModelId);
bobEntity2.setPosition(2, 0, 0);
bobEntity2.setScale(0.025f);
bobEntity2.updateModelMatrix();
animationData2 = new AnimationData(bobModel.getAnimationList().get(0));
bobEntity2.setAnimationData(animationData2);
scene.addEntity(bobEntity2);
...
}
...
public void update(Window window, Scene scene, long diffTimeMillis) {
animationData1.nextFrame();
if (diffTimeMillis % 2 == 0) {
animationData2.nextFrame();
}
...
}
}

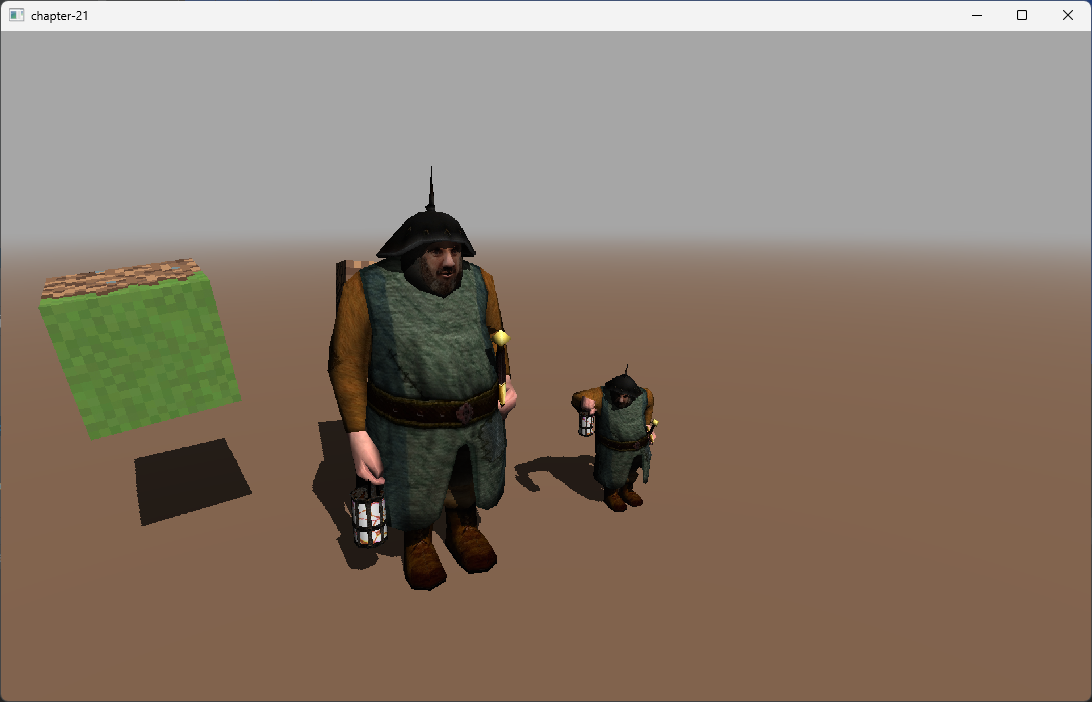

完成所有这些更改后，您应该能够看到类似这样的内容。
